/ Product / Compliance Test Fixture / Arcanum / PCIE Gen5 Test Fixture M.2 CBB+ CLB1 + CLB2
PCIE Gen5 Test Fixture
M.2 CBB+ CLB1 + CLB2
M.2 CBB + CLB1 + CLB2 Signal Integrity Board for Physical Layer Compliance.
Summary:
DATA SHEET
For further information, please contact TRI-LIGHTS

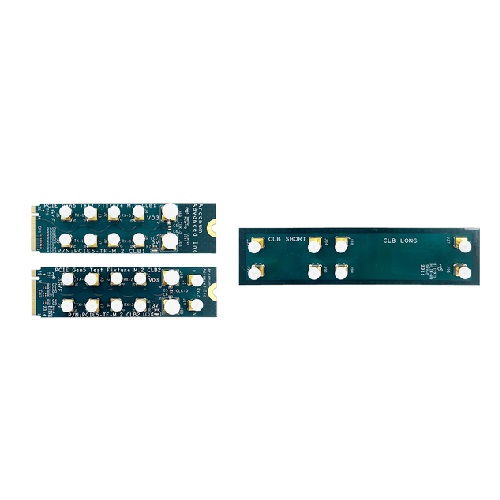

Engineered for M.2 physical layer compliance testing, this signal integrity board supports PCIe 5.0 (32 GT/s) and is compatible with M.2 CBB, CLB1, and CLB2 modules. It enables accurate calibration for both transmitter and receiver paths.
Featuring MMPX connectors, the board is 100% compatible with the PCI-SIG CEM ISI board.
