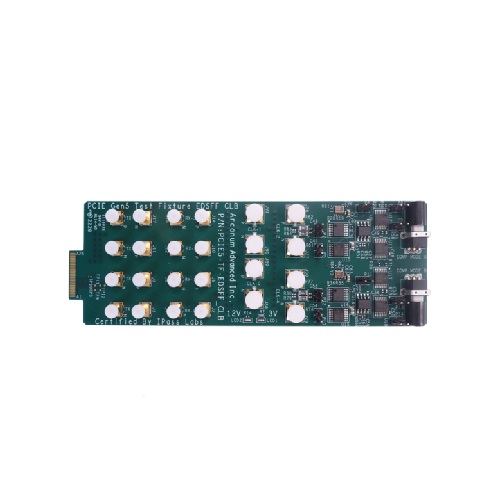

PCIE Gen5 Test Fixture
EDSFF E1.S/E1.L CBB+CLB

Signal Integrity Board for EDSFF (SFF-TA-1006, SFF-TA-1007) Physical Layer Compliance
Designed for signal integrity validation, this board supports PCIe 5.0 (32 GT/s) and is compatible with EDSFF CBB and CLB form factors. It enables precise calibration for both transmitter and receiver testing.
Equipped with MMPX connectors, it offers 100% compatibility with the PCI-SIG CEM ISI board.
