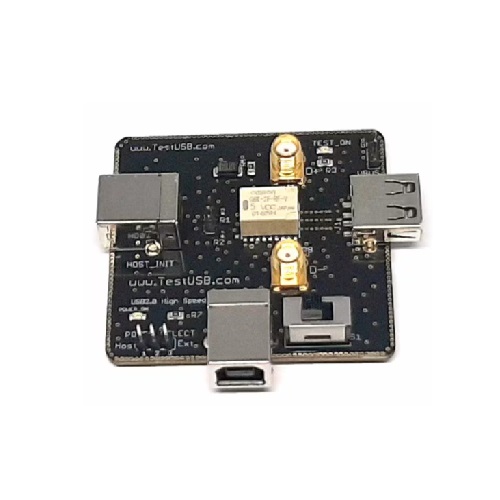

USB 2.0 Legacy High Speed Signal Quality Test Fixture (A-Receptacle)
FS-HUAR
USB 2.0 Legacy High Speed Signal Quality Test Fixture (A-Receptacle)
Summary:
USB-IF approved Test Fixture for USB 2.0 High Device upstream EYE diagram. The most crucial USB 2.0 electrical measurement for USB High Speed device can be measured with this fixture.
Can be used by any brand of oscilloscope.
USB-IF approved Test Fixture for USB 2.0 High Device upstream EYE diagram. The most crucial USB 2.0 electrical measurement for USB High Speed device can be measured with this fixture.
Can be used by any brand of oscilloscope.
