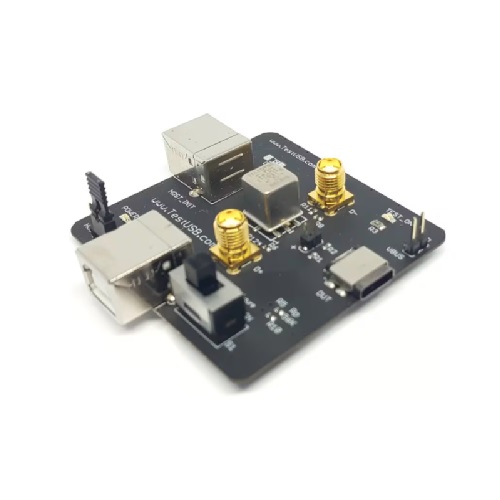

USB 2.0 Type-C® High Speed Receiver Sensitivity Fixture
FS-HUCR-RX
USB 2.0 Type-C® High Speed Receiver Sensitivity Fixture
Summary:
USB 2.0 High Speed device requires to perform receiver testing.
The USB 2.0 Type-C High Speed Electrical Receiver Sensitivity Fixture can be used for the following tests:
– 12 bit SYNC field test (EL_18)
– Receiver Sensitivity (EL_17)
– Squelch (EL_16)
Can be used by any brand of oscilloscope.
