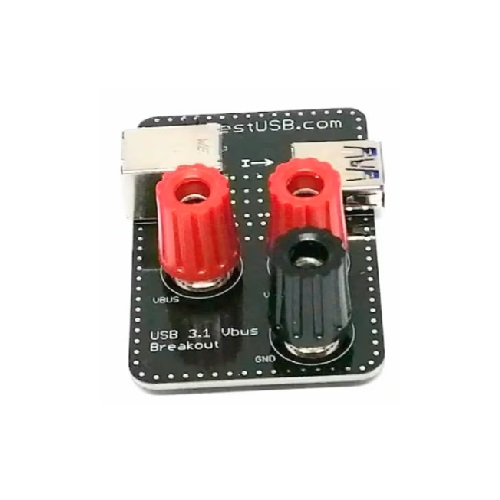

The following test can be performed with the USB 3.1 Vbus breakout fixture:

• USB 2.0 Low, Full, High Speed power consumption
  • Unconfigured current
  • Configured current
  • Active current
  • Powered suspend current
  • Suspend current
• USB 3.1
  • U1 current
  • U2 current
  • U3 current
• USB Power delivery
• USB Vbus drop
• USB Vbus droop
• External power device over Vbus (required for re-enumerating devices using cypress FX2 / FX3 silicon)

For further information, please contact TRI-LIGHTS
