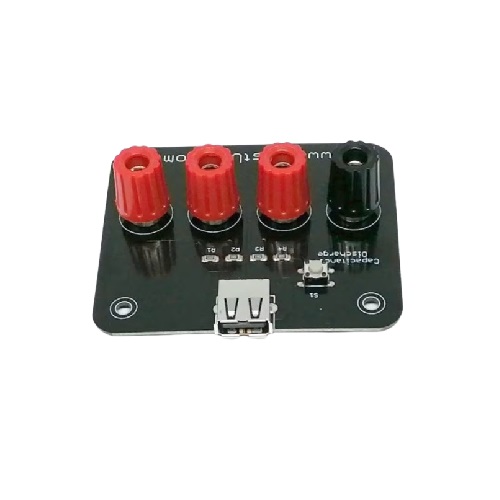

Back Voltage Test Fixture
FS-BV
Fixture for doing the USB 2.0 Back Voltage test.
Summary:
With this fixture the Back Voltage test can be performed and is Mandatory USB-IF Compliance test verifying section 7.2.1 of the USB specification.
There is safe capacitance discharge button of Vbus toward GND through 200 Ohm.
This fixture is USB-IF approved!
